RAM X-Grip Phone Mount kit for steering bolt

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5” to 1.49”) in diameter, the RAM-B-176-A-UN7U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM® X-Grip® phone holder. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM® X-Grip® fits phones ranging from 1.87" to 3.25" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.

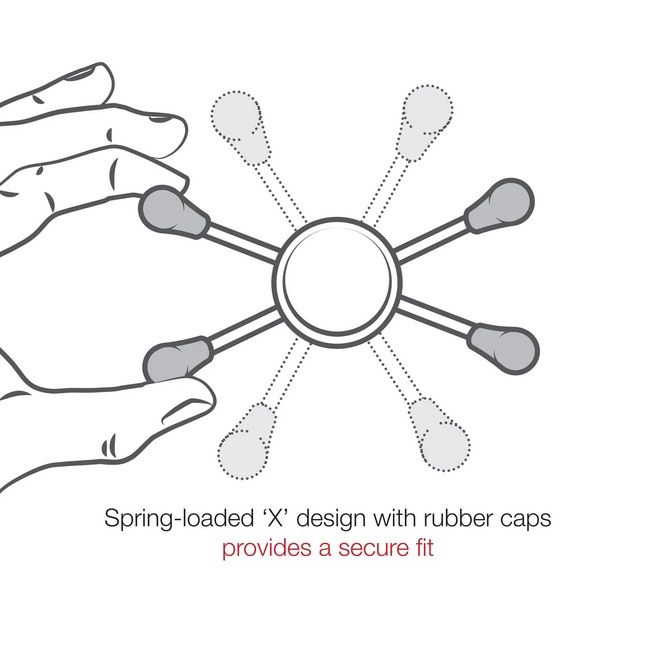

• Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
• Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of stainless steel components, high-strength composites, and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Assembly hardware included:

(1) Optional Tether

(1) Glue Tube for Rubber Caps

(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes

(1) M5 x 60mm Machine Screw

(1) Steel Washer Set

(1) Nut Pocket Washer Set

(1) Brass Nylock Nut

Materials:

Marine-grade aluminum

High strength composite

Stainless steel

Details:

Width Range: 1.875" - 3.25" (4.8 – 8.3 cm.)

Depth Range: .875" max (2.2 cm)

Socket to socket length: 1.75" (4.5 cm)

Weight: 0.65 lb (0.295 kg)
